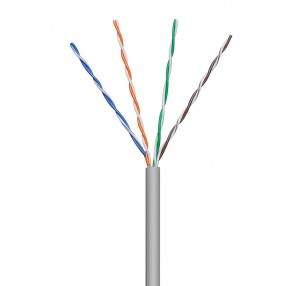

CAVO ETHERNET CAT5 UTP LSZH 8 FILI 24AWG UNIARCH CAB5E

Name: CAVO ETHERNET CAT5 UTP LSZH 8 FILI 24AWG UNIARCH CAB5E
SKU: 000002400154
Price: 0.61 EUR
Availability: InStock

€ 0,61

N.B

Inserire la quantità al metro 1=1m

231 disponibili

COD: 000002400154 Categoria: Cavi Lan-Utp e telefonici

Descrizione
Informazioni aggiuntive

Product model

CAB-5E-A

Product specification

HSYV-5e 4×2×0.50

Test Standard

YD/T1019-2013

Conductor

Material

Solid-Bare Copper

AWG

Nom.O.D.(mm)

0.5±0.01 mm

DC resistance

≤95 Ω/km

Insulation

Material

HDPE

Thickness

0.2±0.02 mm

Diameter

0.9±0.05 mm

Color

Blue/White- Blue

Green/White-Green

Orange
/White-Orange

Brown/White-Brown

Pitch

Offset pitch

≤25 mm

Electrical Characteristics:
Frequency	Characteristic impedance	RL	ATT	NEXT
MHz	ohm	≥dB/100m	≤dB/100m	≥dB/100m
1	100±15	20.0	2.0	65.3
4	100±15	23.0	4.1	56.3
10	100±15	25.0	6.5	50.3
16	100±15	25.0	8.2	47.3
20	100±15	25.0	9.3	45.8
31.25	100±15	23.6	11.6	42.9
62.5	100±15	21.5	17.0	38.4
100	100±15	20.1	22.0	35.3

Frequency	FEXT	PS NEXT	PS FEXT	Phase delay
MHz	≥dB/100m	≥dB/100m	≥dB/100m	≤ns/100m
1	63.8	62.3	60.8	570.0
4	51.7	53.3	48.7	552.0
10	43.8	47.3	40.8	545.4
16	39.7	44.2	36.7	543.0
20	37.7	42.8	34.7	542.0
31.25	33.9	39.9	30.9	540.4
62.5	27.8	35.4	24.8	538.6
100	23.8	32.3	20.8	537.4

Cable pitch

≤140 mm

Sheath

Material

PVC(complies RoHS/REACH)

External O.D.

5.1±0.3 mm

Color

Gray(RAL7046)

Tensile strength

>13.5 Mpa

Thickness

0.55±0.05 mm

Surface Printing

Letter height

3.0±0.3 mm

Color

Black

Print error
& Space

1±0.005 m

Case number

Yes

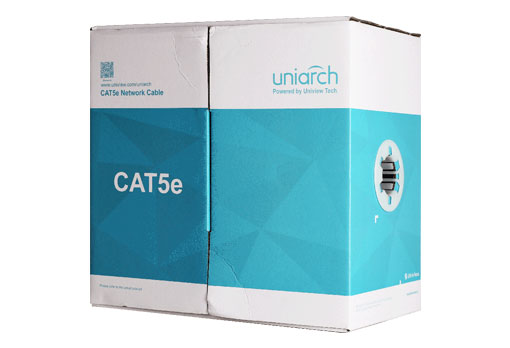

Packing

Carton

Once packing dimension

350mm*216mm*350mm

Twice packing dimension

370mm*460mm*370mm

Twice packing quantity

2 cases

Packing length

305±1 m

Rip-cord

Yes

Ambient temperature

-20℃～60℃

Peso	1 kg
